GrandAire 1.5‑Ton SEER2 Condenser & 2‑Ton ECM Air Handler Bundle (R‑454B System)”
$2,178.52
A matched GrandAire bundle combining a 14.3 SEER2, R‑454B 1.5‑ton condenser with a 2‑ton ECM multi-position air handler—energy-efficient, eco-friendly, and installation-ready.
Product Documents
Product Documents

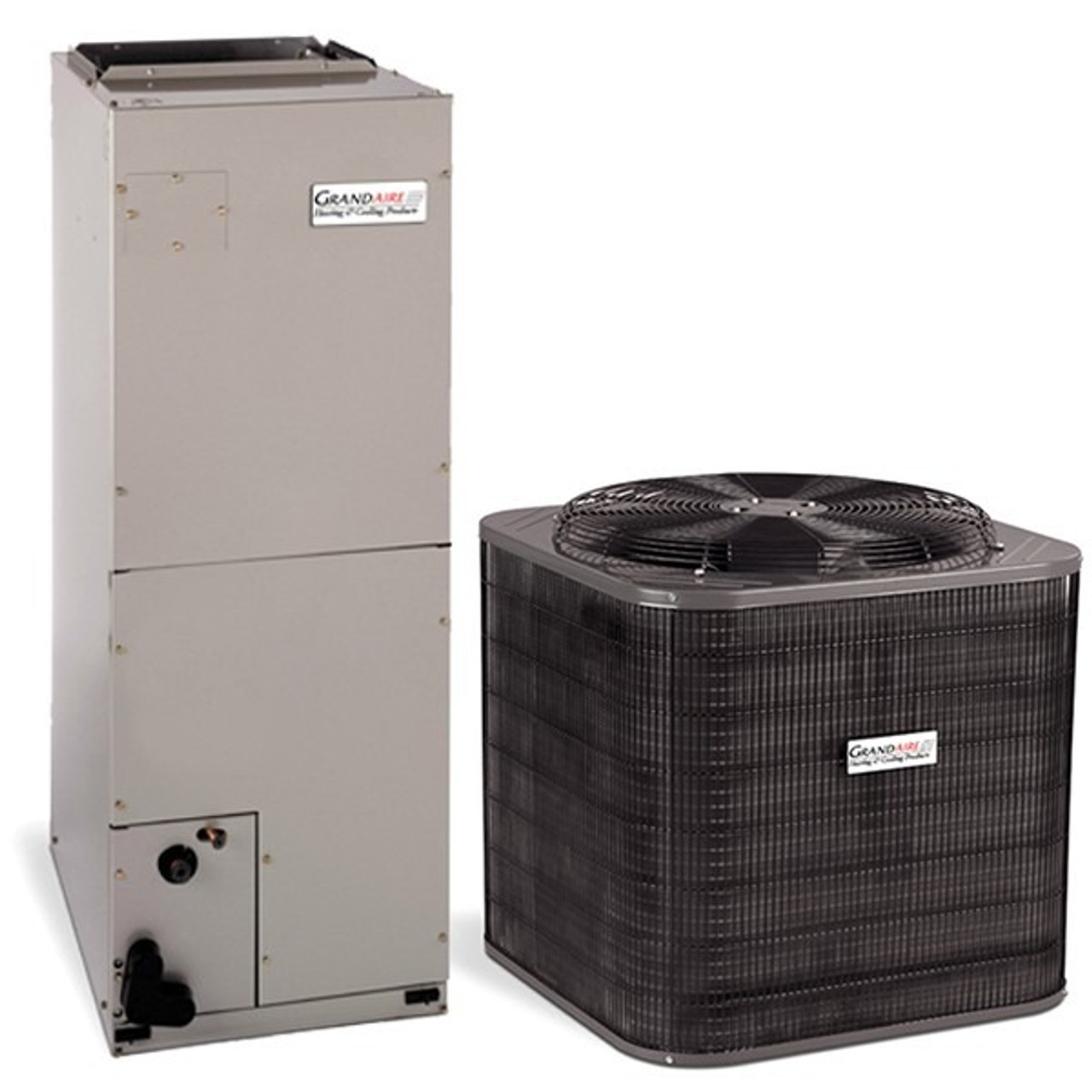

Upgrade your HVAC system with this high-efficiency, eco-conscious bundle featuring the GrandAire W5A5S18AKAWA 1.5‑ton condenser and WCHL245AB 2‑ton multi-position air handler.
The condenser delivers reliable cooling with a 14.3 SEER2 rating, using low‑GWP R‑454B refrigerant, quiet scroll-compressor operation, and performance down to 0 °F. The air handler complements it perfectly with a variable-speed ECM motor, TXV metering, and flexible installation orientations (upflow, downflow, horizontal). Together, they offer seamless, efficient performance designed for the 2025 SEER2 standards.
Built with durable, powder‑coated galvanized steel and advanced components, this pairing ensures long-term reliability, straightforward installation (factory-charged up to 15 ft), and environmentally responsible operation. Ideal for residential and light commercial use, this bundle simplifies purchasing while elevating your comfort and energy savings.
Additional information
| Models | W5A5S18AKAWA (Condenser), WCHL245AB (Air Handler) |
|---|---|
| Capacity | Condenser: 1.5 Tons (18,000 BTU); Air Handler: 2 Tons (24,000 BTU) |
| Refrigerant | R‑454B |
| Weight | Condenser: 125 lbs; Air Handler: 150 lbs |
| Motor Power | 1/2 HP (Air Handler) |
| Brand | GrandAire |
| Installation | Air Handler: Up flow/Downflow/Horizontal |
| Compressor Type | Single‑stage scroll (Condenser) |
| Voltage/Phase | 208–230 V / Single‑phase / 60 Hz |
| Dimensions | Condenser: 25.75×25.75×28.69"; Air Handler: 49.625×17.5×21.125" |
| Weight Condenser: | 125 lbs; Air Handler: ~150 lbs |
| Construction | Galvanized steel with corrosion‑resistant finish |
| Features | Filter rack (Air Handler); Factory charge up to 15 ft (Condenser); Low ambient cooling, thermal overload, internal valve protection |
| Environmental | Low GWP refrigerant; SEER2 compliant |
| Applications | Residential, light commercial |
