Rheem 2 Ton RF2TY2421STJN Two‑Stage R‑454B Air Handler
$1,174.28
High-efficiency 2‑ton air handler (RF2TY2421STJN00417) featuring a constant‑torque ECM blower, low‑GWP R‑454B refrigerant, A2L compatibility, integrated refrigerant detection, and compact insulated design for quiet, reliable performance.
Out of stock

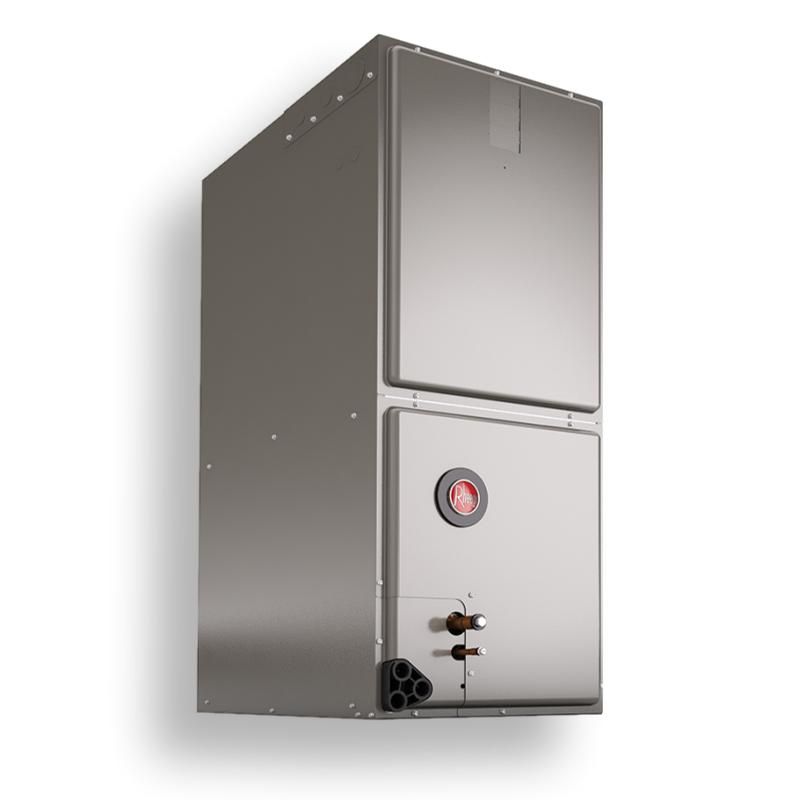

The Rheem RF2TY2421STJN00417 2‑Ton Two‑Stage Constant Torque Air Handler is a sophisticated, front-return air handling unit designed for efficient, quiet, and eco-conscious HVAC performance. Utilizing the low‑GWP refrigerant R‑454B, it’s fully A2L compatible, featuring Rheem’s patented PlusOne® Refrigerant Detection System™—a built-in sensor and mitigation board that simplifies wiring and automatically halts outdoor unit operation if excess refrigerant is detected.
Its rugged steel cabinet, insulated with 1‑inch of foil‑faced padding, ensures superior noise reduction and thermal performance. The aluminum coil, crafted with internally grooved tube and fin design.
Additional information
| Weight | 95.0 lbs |
|---|---|
| Dimensions | 21.5 × 17 × 36 in |
| Brand | Rheem |
| Model | RF2TY2421STJN00417 |
| Cooling Capacity | 2 Ton (24,000 BTU/h) |
| Motor Type | ECM Constant‑Torque, 2‑speed |
| Airflow | 600–800 CFM (up to 900 CFM max) |
| Refrigerant | R‑454B (low GWP), A2L Compatible |
| Refrigerant Detection | PlusOne® Sensor + Mitigation Board |
| Coil Material | Aluminum, internally grooved, corrosion-resistant |
| Electrical | 208–230 V, 1‑phase, 60 Hz, 1.9 A motor, 3 A circuit |
| Metering Device | TXV |
