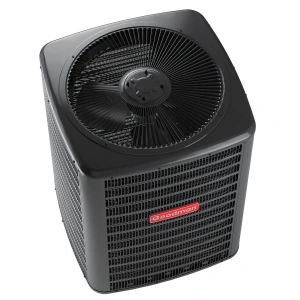

Goodman GLXS4BA3010 – 2.5 Ton R-32 Air Conditioner Condenser, 14.3 SEER2, Single-Stage
$1,311.66
Carrier 2.5 Ton 14.3 SEER2 Single‑Stage Air Conditioner GA5SAN53000W – R‑454B
$1,718.42

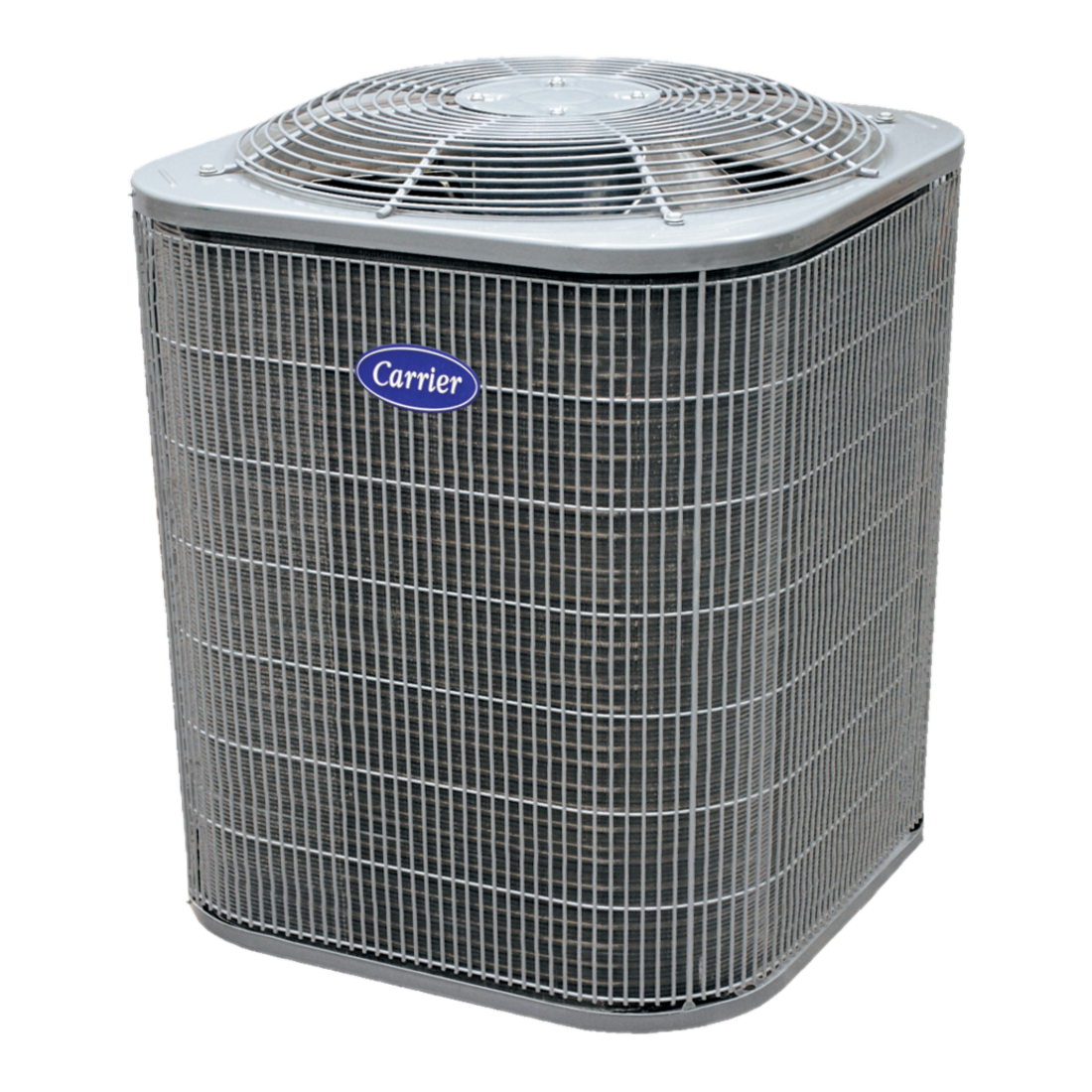

3.5 Ton Carrier GA5SAN44200W – Up to 16 SEER2 Residential Air Conditioner Condensing Unit
$1,743.00
Carrier GA5SAN44200W is a reliable 3.5‑ton residential condenser offering up to 16 SEER2 efficiency, featuring a scroll compressor and R‑410A refrigerant.
Out of stock
The Carrier GA5SAN44200W condensing unit delivers efficient and dependable cooling for homes up to approximately 2,000–2,500 sq ft. This single-stage unit uses a robust scroll compressor, operates on eco-friendly R‑410A (Puron®) refrigerant, and achieves up to 16 SEER2 performance. Built with a durable sheet-metal cabinet, dense wire coil guard, and internal safety features such as pressure relief and thermal overload protection, this unit is designed for long-term reliability Capable of long-line applications up to 250 ft and low-ambient cooling down to 0 °F (with accessory kits), the GA5SAN44200W is ideal for flexible installations . The factory-installed TXV ensures optimal refrigerant metering and serviceability.
-
Capacity: 42,000 BTU/h (3.5 ton)
-
Efficiency: Up to 16 SEER2 (range 13.8–16)Refrigerant: R‑410A (Puron®)
-
Compressor: Single-stage scroll with internal pressure relief and thermal overload protection
-
Piping & Accessories: Factory TXV, long-line capable (up to 250 ft), low-ambient ready with kit
-
Construction: Heavy‑duty sheet metal, wire coil guard, filter drier included
-
Electrical: 208/230 V, single-phase; MCA ~32 A (estimated from family data)
Additional information
| Weight | 257 lbs |
|---|---|
| Dimensions | 35 × 35 × 40.6 in |
| Brand | Carrier |
| Model Number | GA5SAN44200W |
| Nominal Cooling Capacity | 42,000 BTU/h (3.5 ton) |
| Efficiency Rating | Up to 16 SEER2 (range 13.8–16) |
| Refrigerant | R‑410A (Puron®) |
| Compressor Type | Single‑Stage Scroll with internal safety features |
| Metering Device | Factory‑installed TXV |
| Long-Line Capable | Up to 250 ft equivalent (200 ft vertical) |
| Low Ambient Capability | Down to 0 °F with optional kit |
| Cabinet Construction | Sheet‑metal with dense wire coil guard |
| Filter Drier | Included factory-installed |
| Voltage Phase | 208/230 V, Single Phase |
| Shipping Weight | Approximately 257 lb |
| Unit Dimensions | 35″ W × 35″ D × 40.6″ H |
| Application | Residential air conditioning |
