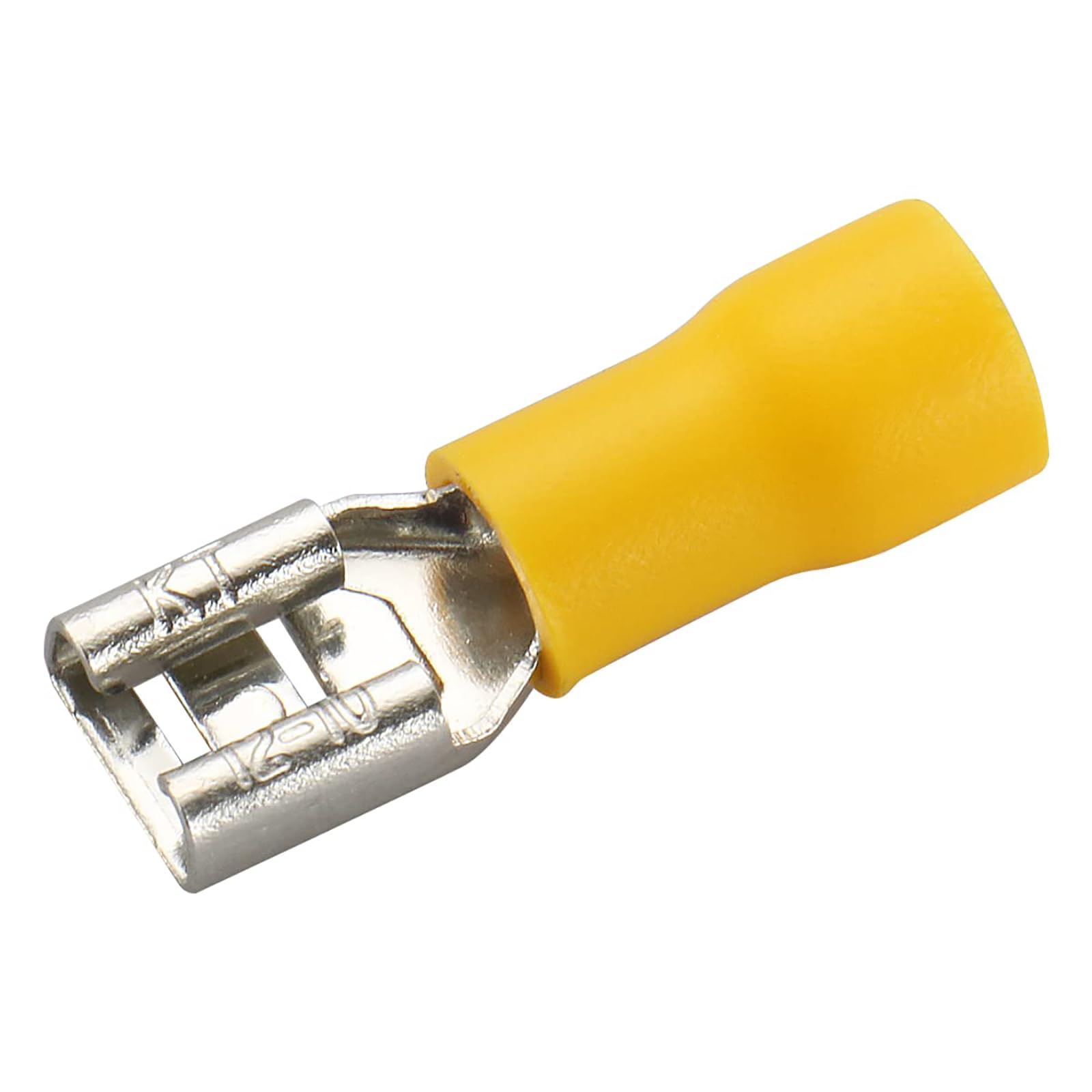

FDD5.5‑250 – Yellow Insulated Female Quick Disconnect
$5.20
The FDD5.5‑250 female quick-disconnect terminal is vinyl-insulated, rated for 12–10 AWG, supports 0.25″ tabs, and offers 24 A/600 V capacity with strain-relief double-crimp for reliable connections.
75 in stock
The FDD5.5‑250 is a vinyl‑insulated female quick-disconnect terminal, designed for heavy-duty electrical connections in HVAC, automotive, and industrial wiring. It fits 12–10 AWG wires and mates with standard 0.25″ blade tabs.
Featuring a double-crimp design—including an inner copper barrel—it delivers enhanced strain relief, reducing stress on conductor strands and improving connection integrity. The tin-plated brass construction ensures excellent conductivity and corrosion resistance, while the yellow vinyl insulation provides a convenient visual indicator of wire size compatibility.
With a maximum current rating of 24 A and support for up to 600 V at 105 °C, the FDD5.5‑250 terminal is UL listed, CE certified, and RoHS compliant, providing reliable and safe performance in demanding environments.
Additional information
| Weight | 0.28 lbs |
|---|---|
| Dimensions | 6 × 4 × 2 in |
| Model | FDD5.5‑250 |
| Material | Tin-plated brass |
| Insulation | Yellow vinyl |
| Max Current | 24 A |
| Voltage Rating | 600 V |
| Design | Double-crimp for strain relief |
