CPS MBAP5E Two-Valve Premium Piston Triple-Seal Analog Manifold – 2.5″ Class 1.6 Gauges with 5 ft Barrier Hoses
$66.00
Durable and high-precision analog manifold with triple-seal piston valves, 2.5″ Class 1.6 gauges, and 5 ft refrigerant barrier hoses for modern HVAC systems using R-32, R-410A, and R-454B refrigerants.
2 in stock

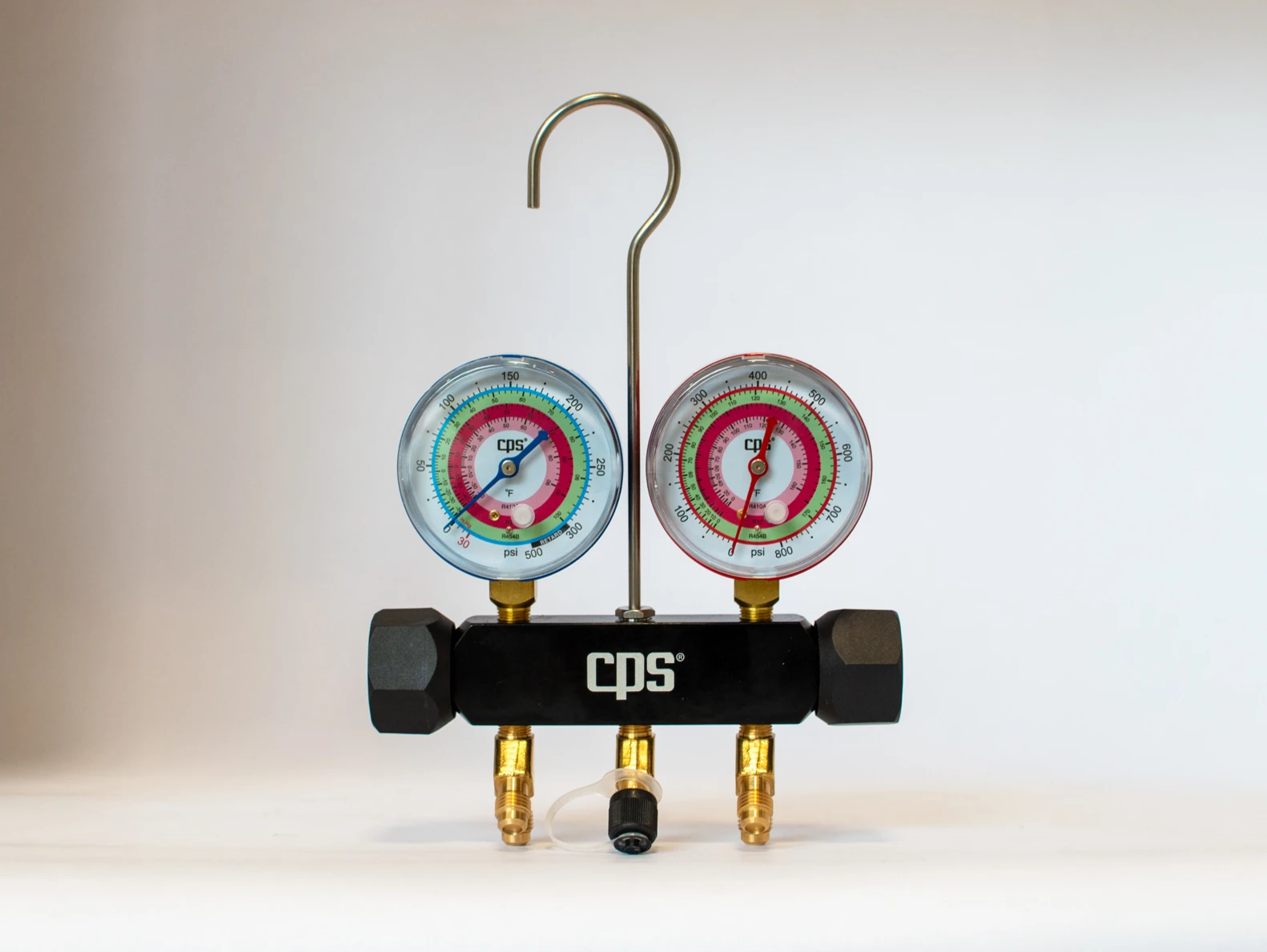

The CPS MBAP5E is a professional-grade analog manifold designed for HVAC technicians who demand accuracy and reliability. Built with a black anodized aluminum body, this two-valve manifold features high-visibility 2.5″ Class 1.6 accuracy gauges and CPS’s signature Triple-Seal piston valves using three Neoprene O-rings per valve for maximum durability and leak resistance.

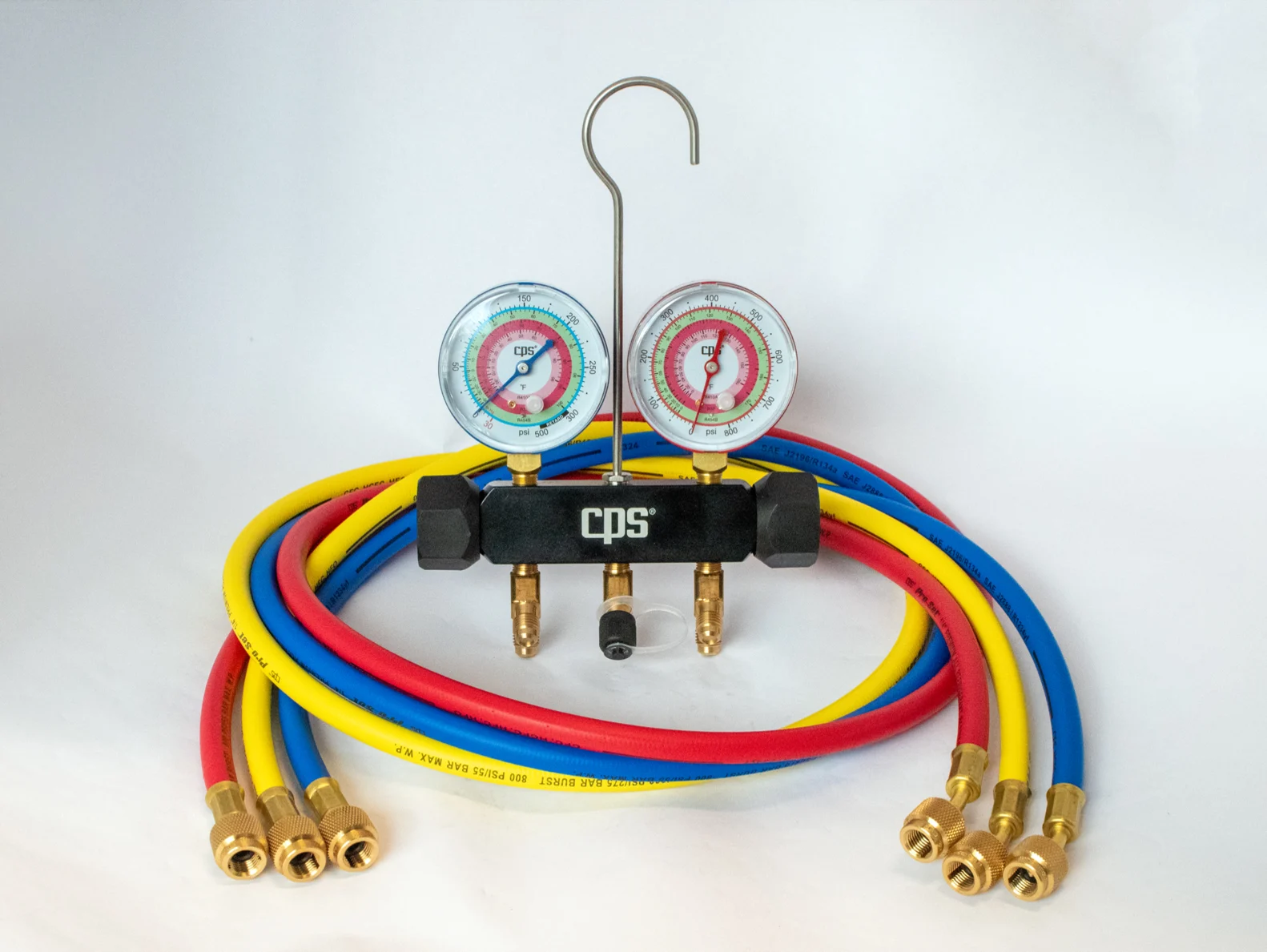

Included are three 5-foot premium barrier hoses with ball valves, engineered to handle R-32, R-410A, R-454B, and other modern refrigerants. The hoses meet SAE J2196 performance standards and offer high-pressure tolerance, chemical resistance, and low permeability.
Additional features include blow-off spray grooves, deep knurl grip nuts for easy connection, internal gauge damping for stable readouts, a center Schrader port for refrigerant charging, and a hook for hanging during service. This manifold is built to perform under tough field conditions.
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 16 × 10 × 4 in |
| Model | MBAP5E |
| Valve Type | 2-Valve Triple-Seal Piston (3 Neoprene O-Rings per valve) |
| Gauge Size & Class | 2.5″ Analog Gauges – Class 1.6 Accuracy |
| Refrigerant Scale | R-32, R-410A, R-454B, A2L Compatible |
| Hoses Included | 3 × 5 ft Barrier Hoses with Ball Valves |
| Hose Specs | Nylon Barrier SAE J2196 – 800 psi working, 4000 psi burst |
| Fittings | 1/4″ SAE 45° Connections |
| Body Material | Anodized Aluminum |
| Center Port | Schrader Valve Access |
| Extras | Hanging Hook, Blow-Off Grooves, Deep Knurl Nuts, Silicone Gauge Damping |
| Application | HVAC Service, Charging, Recovery, Diagnostics |
