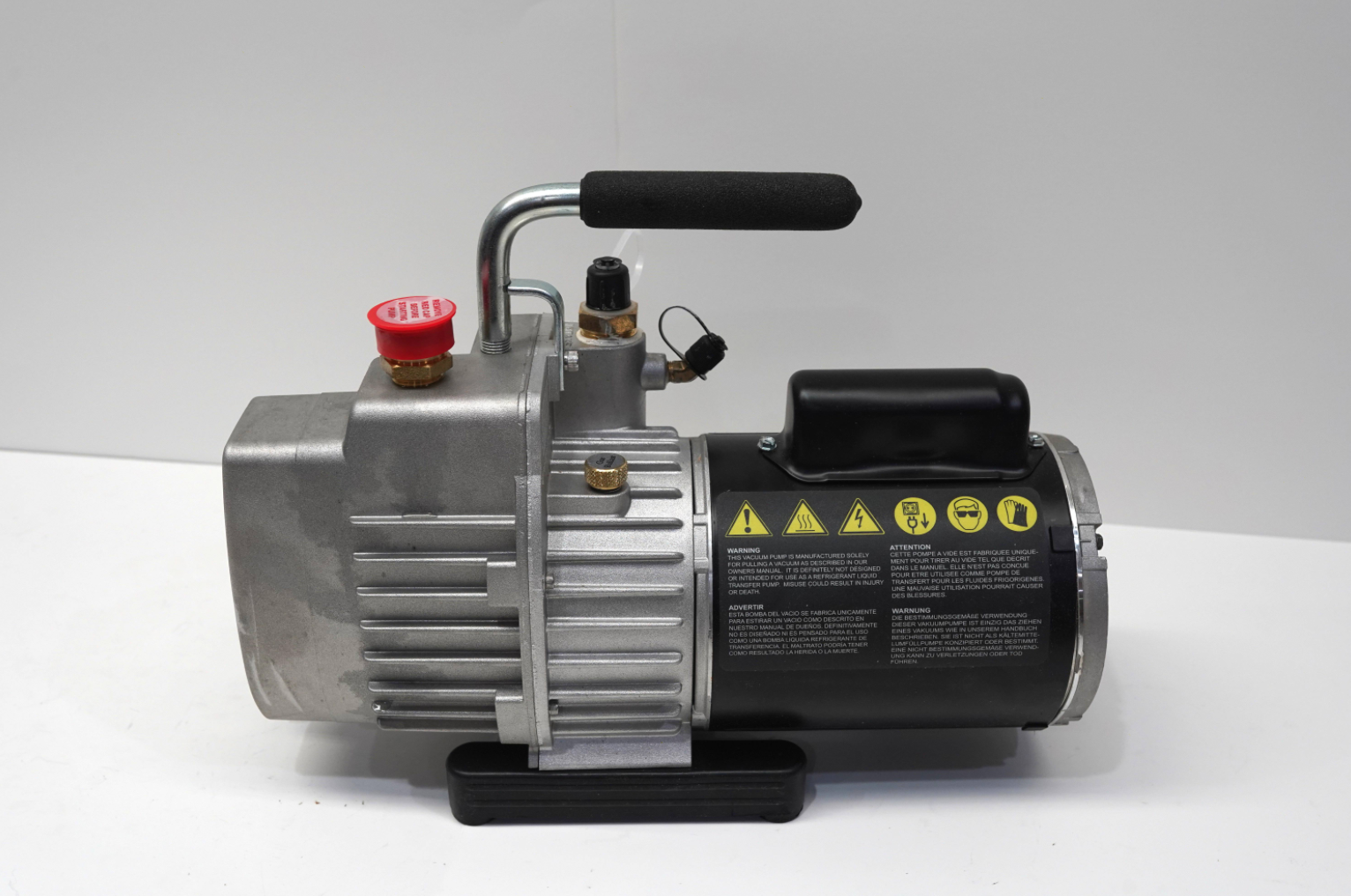

Yellow Jacket 93560YJII™ SuperVAC Vacuum Pump, 6 CFM, 115V, 60 Hz Single Phase

The SuperEvac Vacuum Pump is a highly efficient, two-stage rotary vane oil-sealed pump field-rated at 15 microns or better.

Product Features

• Isolation valve for oil changes without losing vacuum in the system
• Built-in vacuum indicator gauge
• Wide-mouth oil reservoir port for easier, cleaner filling. Doubles as pump exhaust—threaded to attach garden hose for exhausting to remote location
• Large oil sight glass for easy monitoring of oil level
• Large brass oil drain for easy access to fast oil changes
• Gas ballast valve keeps oil cleaner, longer during evacuation of wet systems
• Internal intake check valve prevents oil backup into the system during a power failure
• Intake filter screen keeps damaging particles from entering the pump
• Heavy duty rotors and bearings
• Heavy duty steel handle with lift hook for well-balanced carrying
• Tethered port caps stay with the pump
• Metal with rubber overlay base for stability
• Made in the USA

• 1/4″ and 3/8″ Male flare intake
• 34 oz. oil capacity
• 16.25″ L x 6″ W x 11.5″ H
• 31.5 lbs. (14.3 kg)
