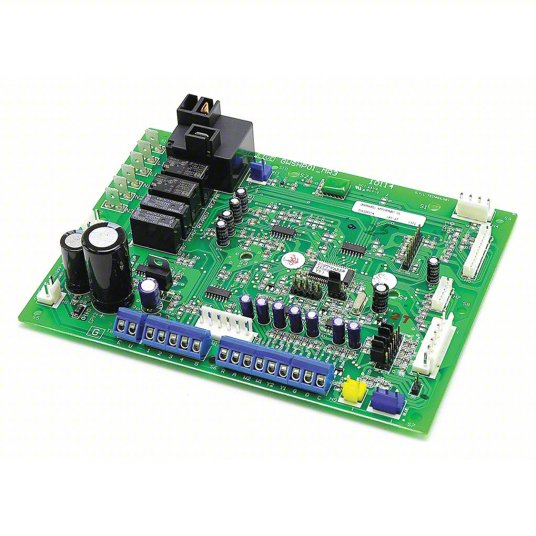

Mini Split Control Board 0532

The Mini Split Control Board 0532 is an essential component in ductless HVAC systems, functioning as the central command unit for controlling a wide range of operational features. This board manages communication between indoor and outdoor units, fan speeds, thermostat inputs, compressor timing, and mode selection (cooling, heating, fan, dehumidification). It is engineered to ensure that all system elements operate in harmony, improving energy efficiency and system longevity.

The 0532 board is typically designed with universal compatibility in mind and is often found in a variety of OEM and aftermarket systems. It includes integrated diagnostic LED indicators, relay outputs, signal converters, and often supports inverter technology (inverter-compatible versions available). The onboard processor interprets real-time input from sensors and user commands to execute operational changes instantaneously.

This control board also features multiple safety protocols including thermal overload, compressor delay protection, voltage regulation, and fan motor controls. It is commonly installed in systems from brands like Gree, Midea, Carrier (ICP), and other private-label mini split units.

Its durable printed circuit board (PCB) design is built to withstand indoor unit environmental conditions and is usually plug-and-play with compatible systems, simplifying repairs or replacements. Installation must be performed by a qualified technician, as incorrect wiring or configuration may damage the system or void warranties.
