GrandAire 3.5 Ton HVAC System – 15 SEER2 R-454B Condenser & Multi-Position Air Handler (208-230V, ECM Motor)
GrandAire 2.5 Ton 15 SEER2 R‑454B Cooling System Bundle – Condenser + Multi‑Position Air Handler
Complete GrandAire 2.5 Ton R‑454B HVAC Bundle—15 SEER2 condenser + ECM multi‑position air handler. Energy-efficient, eco-friendly solution for modern cooling needs.
Product Documents

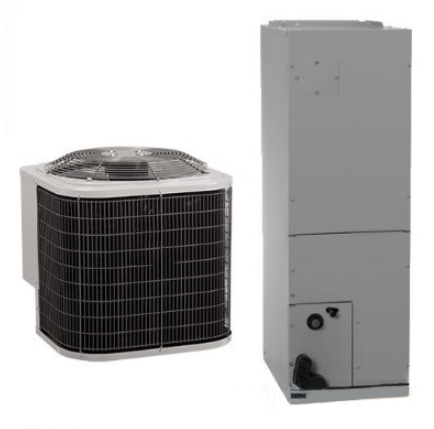

Upgrade your HVAC setup with this eco-conscious and high-performance GrandAire 2.5 Ton Cooling System Bundle—featuring the W5A5S30AKAWA condenser (15 SEER2, R‑454B) and the WCHL365AB Multi‑Position Air Handler. Designed for modern efficiency standards and EPA compliance, this combination delivers low-GWP operation alongside dependable and quiet performance.
The condenser delivers 30,000 BTU/h cooling with a scroll compressor and galvanized steel construction, rated for long-line installations and boasting a sound output of approximately 71 dBA. The air handler features an ECM blower, factory-installed TXV, fully insulated cabinet, and flexible multi-position mounting (up flow, downflow, horizontal left/right) . Both units use R‑454B refrigerant for a significant reduction in environmental impact (≈75% lower GWP than R‑410A)
Perfect for both new installations and system replacements, this bundle combines energy savings, environmental responsibility, and GrandAire’s trusted 10-year parts and compressor limited warranty.
Additional information
| Product Type | Cooling System Bundle |
|---|---|
| Components | Condenser (W5A5S30AKAWA) + Air Handler (WCHL365AB) |
| SEER2 Rating | 15 SEER2 |
| Tonnage/Cooling | 2.5 Ton (30,000 BTU/h) |
| Refrigerant | R‑454B (Low GWP, EPA 2025 compliant) |
| Compressor Type | Scroll (Condenser) |
| Motor Type | ECM (Air Handler) |
| Installation | Multi‐Position (Up flow, Downflow, Horizontal left/right) |
| Cabinet Construction | Galvanized steel, powder‐coated (outdoor); galvanized & insulated (indoor) |
| Coil Material | Aluminum coil (Air Handler) |
| Metering Device | Factory-installed TXV (Air Handler) |
| Long‑Line Capability | Supports up to ~250 ft (Condenser) |
| Warranty | 10‑Year parts & compressor limited warranty |
| Weight (Condenser) | 148 lbs |
| Dimensions (Condenser) | 31.2" W × 31.2" D × 38.5" H |
| Weight (Air Handler) | 125 lbs |
| Dimensions (Air Handler) | 17.6" W × 22.1" D × 49.6" H |
| Applications | Residential / Light Commercial |
